آزمایشگاه و فن آوری استریلیزاسیون

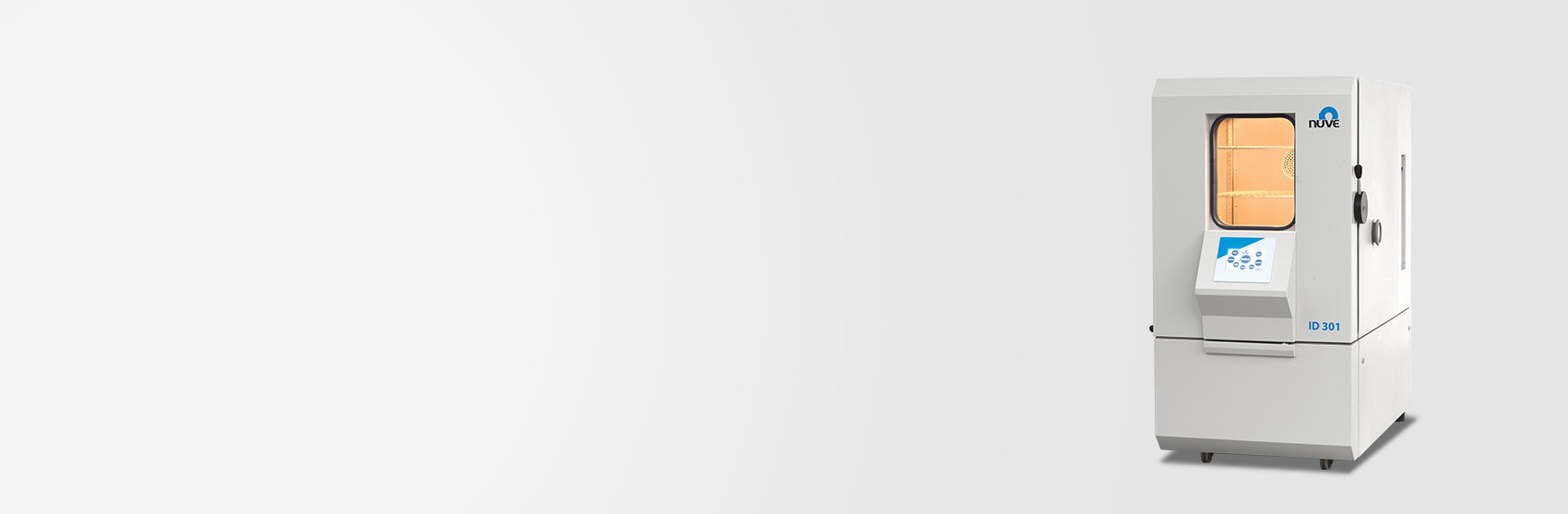

کابینت تست آب و هوا

İD 301

دامنه وسیع دما و رطوبت

طراحی ایده آل برای آزمایشات در شرایط مختلف آب و هوایی برای تست های پایداری، پیری مصنوعی و ذخیره سازی در صنایعی مانند الکترونیک، خودرو، قطعات خودرو، هواپیما و هوانوردی، شیمیایی، پلاستیک، نساجی، دارویی، مصالح ساختمانی، مواد غذایی، بسته بندی و تجهیزات نظامی.

More

طراحی ایده آل برای آزمایشات در شرایط مختلف آب و هوایی برای تست های پایداری، پیری مصنوعی و ذخیره سازی در صنایعی مانند الکترونیک، خودرو، قطعات خودرو، هواپیما و هوانوردی، شیمیایی، پلاستیک، نساجی، دارویی، مصالح ساختمانی، مواد غذایی، بسته بندی و تجهیزات نظامی.



سیستم کنترل N-Wise™ برای بهینه سازی مداوم شرایط آب و هوایی و اطلاعات کامل با صفحه نمایش لمسی رنگارنگ 7 اینچی نصب شده بر روی در، عملیات ارگونومیک را ارائه می دهد. شیب های گرمایش و سرمایش را می توان به صورت درجه سانتی گراد در دقیقه یا دوره زمانی برنامه ریزی کرد

مشاهده نمونه کامل از طریق پنجره شیشه ای پنجگانه با گرمایش در برابر تراکم تضمین می شود. فوم تزریق شده و پانل های آلومینیومی با ارائه عایق نهایی با پشم شیشه ترکیب می شوند. درب با مهر و موم دوبل نصب شده است.

سایت مرجع سری محصولات اتاق تست پایداری

برای مشاهده توضیحات تکمیلی در خصوص محصول کابینت تست آب و هوا کیلک کنید.

  • برای خرید محصول با کد İD 301 اینجا کلیک کنید.

İD 301
کاتالوگ محصول
دانلود
NÜVE
کاتالوگ شرکت
دانلود
DETAILS
TECHNICAL SPECIFICATIONS
OPTIONS & ACCESSORIES
  • Volume: 290 litres.
  • Wide range of temperature control: - 40°C / +150°C.
  • Programmable humidity range: 15% - 98% Rh (Between 10°C / 90°C).
  • Stainless steel chamber resisting sudden temperature changes.
  • Outer body including the door made of epoxy-polyester coated stainless steel to resist high humidity levels.
  • Triple insulation consisting of high density injected polyurethane, glass wool and aluminium layer.
  • Double door seals with heated surface.
  • Door window consists of quintuple glass for perfect insulation.
  • Heated window against condensation.
  • Interior lighting to easily follow the samples.
  • Ø80 mm. access port as standard.
  • Humidity produced reliable humidity generator.
  • Accurate humidity measurement even at high temperatures by sensitive humidity sensor.
  • PID controlled heating and proportional controlled cooling and humidification.
  • Powerful air circulation system maintaining temperature and humidity uniformity and stability even at low temperature.
  • N-Wise™ control system for continuous optimization of climatic conditions.
  • Full information with 7’’ colourful touch screen mounted on the door.
  • Twenty program memories for frequently operated applications.
  • Programmable 20 steps for each program.
  • Program repetition up to 999 times.
  • Programmable ramp function for heating and cooling as °C/minute or time period.
  • Comprehensive self-diagnostic system to provide the information regarding any malfunction.
  • Massive data storage with 2 GB internal memory.
  • Adjustable electronic safety thermostat.
  • External temperature probe connections for four pieces PT 100 temperature probes will ensures measured temperatures to be displayed on the display.
  • Operating parameters can be tracked graphically against time.
  • Wi-Fi connection for N-Mobile™ application for traceability and instant notifications
  • Data tracking and storage on PC via N-Wise Closer™ software.
  • USB port to record the data in the memory to a memory with selectable time intervals between 1 and 60 minutes.
  • Ethernet port for remote access through internet by means of optional N-Wise Closer™ software.
  • Sending e-mails up to five e-mail addresses with the details of failure.
  • Audible alarms and on-screen messages in plain language, no codes.
  • Optional AlerText™ for the ultimate security will send a text to cell (mobile) phones.

Chamber Volume litres

290

Temperature Range without Humidity

- 40°C to +150°C

Temperature Range with Humidity

+10°C to +90°C

Humidity Range

15% to 98% RH

Control System

N-Wise™ Control System

Display

7’’ Colourful Touch Screen

Temperature Set and Reading Sensitivity

0,1°C

Humidity Set and Reading Sensitivity

1% RH

Timer

1 min. to 999 hours 59 min for Each Step and Hold Position

No of Program Memory

20 Programs with 20 Steps  and  1 Program without Step

No of Steps

20

No of Program Repetition

1-99

Memory Capacity

2 Gb

No of Shelves Standard/Max.

2 /16

Internal material

Stainless Steel

External material

Epoxy-polyester Powder Coated Stainless Steel

Power Rating

7.500 W

Power Supply

400 V, 50 Hz.,3 phases

Internal Dimensions (WxDxH) mm

605x625x785

External Dimensions (WxDxH) mm

945x1585x1650

Packing Dimensions (WxDxH) mm

1100x1650x1900

Net/Packed Weight kg

420 / 586

FACTORY FITTED OPTIONS

ID 301A Automatic water supply unit

OPTIONS

A 08 191 AlerText™ GSM Alarm Module
A 08 236 N-Wise Closer™ software (with 3 m RS 232 cable)
I 01 067 Portable PT100 temperature sensor
R 01 128 Stainless steel wire shelf
P 03 566 Shelf carrier (Must be ordered 4 pcs for each shelf)
DETAILS
  • Volume: 290 litres.
  • Wide range of temperature control: - 40°C / +150°C.
  • Programmable humidity range: 15% - 98% Rh (Between 10°C / 90°C).
  • Stainless steel chamber resisting sudden temperature changes.
  • Outer body including the door made of epoxy-polyester coated stainless steel to resist high humidity levels.
  • Triple insulation consisting of high density injected polyurethane, glass wool and aluminium layer.
  • Double door seals with heated surface.
  • Door window consists of quintuple glass for perfect insulation.
  • Heated window against condensation.
  • Interior lighting to easily follow the samples.
  • Ø80 mm. access port as standard.
  • Humidity produced reliable humidity generator.
  • Accurate humidity measurement even at high temperatures by sensitive humidity sensor.
  • PID controlled heating and proportional controlled cooling and humidification.
  • Powerful air circulation system maintaining temperature and humidity uniformity and stability even at low temperature.
  • N-Wise™ control system for continuous optimization of climatic conditions.
  • Full information with 7’’ colourful touch screen mounted on the door.
  • Twenty program memories for frequently operated applications.
  • Programmable 20 steps for each program.
  • Program repetition up to 999 times.
  • Programmable ramp function for heating and cooling as °C/minute or time period.
  • Comprehensive self-diagnostic system to provide the information regarding any malfunction.
  • Massive data storage with 2 GB internal memory.
  • Adjustable electronic safety thermostat.
  • External temperature probe connections for four pieces PT 100 temperature probes will ensures measured temperatures to be displayed on the display.
  • Operating parameters can be tracked graphically against time.
  • Wi-Fi connection for N-Mobile™ application for traceability and instant notifications
  • Data tracking and storage on PC via N-Wise Closer™ software.
  • USB port to record the data in the memory to a memory with selectable time intervals between 1 and 60 minutes.
  • Ethernet port for remote access through internet by means of optional N-Wise Closer™ software.
  • Sending e-mails up to five e-mail addresses with the details of failure.
  • Audible alarms and on-screen messages in plain language, no codes.
  • Optional AlerText™ for the ultimate security will send a text to cell (mobile) phones.
TECHNICAL SPECIFICATIONS

Chamber Volume litres

290

Temperature Range without Humidity

- 40°C to +150°C

Temperature Range with Humidity

+10°C to +90°C

Humidity Range

15% to 98% RH

Control System

N-Wise™ Control System

Display

7’’ Colourful Touch Screen

Temperature Set and Reading Sensitivity

0,1°C

Humidity Set and Reading Sensitivity

1% RH

Timer

1 min. to 999 hours 59 min for Each Step and Hold Position

No of Program Memory

20 Programs with 20 Steps  and  1 Program without Step

No of Steps

20

No of Program Repetition

1-99

Memory Capacity

2 Gb

No of Shelves Standard/Max.

2 /16

Internal material

Stainless Steel

External material

Epoxy-polyester Powder Coated Stainless Steel

Power Rating

7.500 W

Power Supply

400 V, 50 Hz.,3 phases

Internal Dimensions (WxDxH) mm

605x625x785

External Dimensions (WxDxH) mm

945x1585x1650

Packing Dimensions (WxDxH) mm

1100x1650x1900

Net/Packed Weight kg

420 / 586
OPTIONS & ACCESSORIES

FACTORY FITTED OPTIONS

ID 301A Automatic water supply unit

OPTIONS

A 08 191 AlerText™ GSM Alarm Module
A 08 236 N-Wise Closer™ software (with 3 m RS 232 cable)
I 01 067 Portable PT100 temperature sensor
R 01 128 Stainless steel wire shelf
P 03 566 Shelf carrier (Must be ordered 4 pcs for each shelf)
