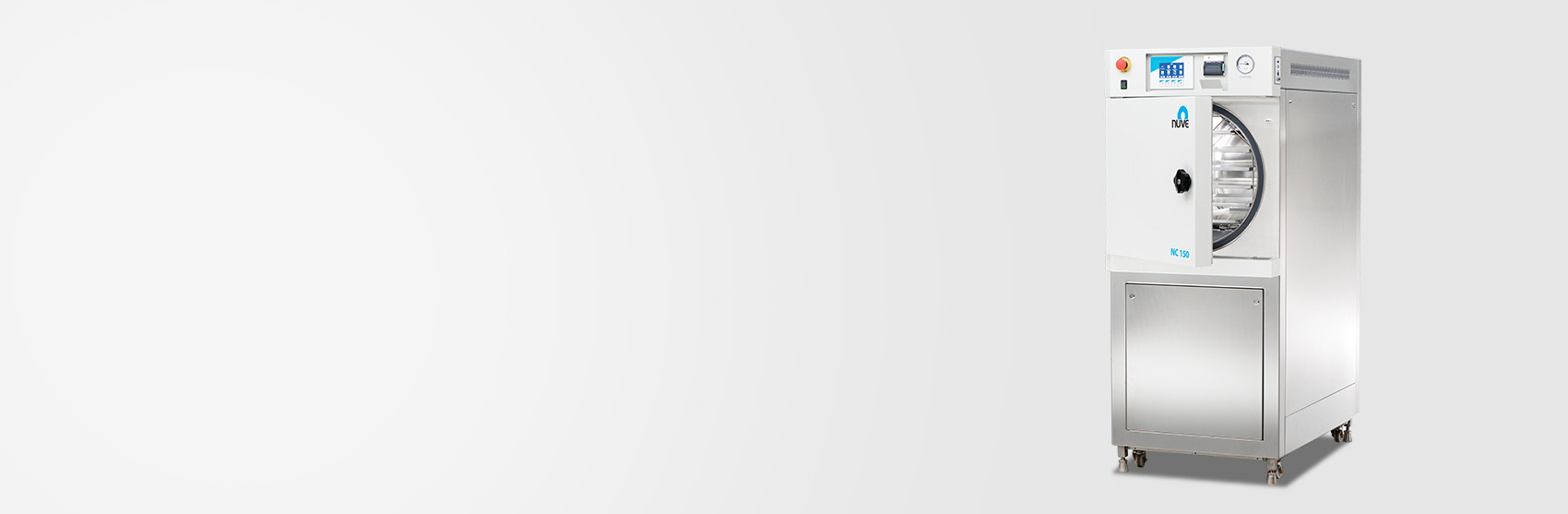

استریل کننده های بخار افقی

NC 150/150D

راه حل ایده آل برای مراکز استریلیزاسیون با اندازه متوسط

دستگاه ضدعفونی کننده بخار NC 150/150D برای مراکز استریلیزاسیون متوسط برای استریل کردن ابزارهای جراحی و دندانپزشکی بسته بندی شده یا بسته بندی نشده، کتانی عملیاتی، شیشه، پلاستیک، مواد لاستیکی و سیلیکونی ایده آل است.

NC 150/150D توسط سیستم کنترل N-Smart™ تغذیه می شود. 7 برنامه از پیش تعیین شده و 12 برنامه سفارشی استریلیزاسیون را برای کاربران آسان تر می کند. قابلیت ردیابی مسئله مهم برای استریلیزاسیون است و N-Smart™ دارای حافظه داخلی تا 500 سیکل آخر برای این منظور است.

در حالی که کیفیت استریلیزاسیون مطابق با نیازهای استاندارد اروپایی EN 285 برای ضدعفونی کننده های بخار بزرگ است، ابزارها با دستورالعمل های تجهیزات پزشکی و تجهیزات فشار مطابقت دارند.

نسخه دو درب NC 150D برای مراکز استریلیزاسیون که مناطق تمیز و استریل را جدا کرده اند ایده آل است.

سایت مرجع سری محصولات استریل کننده های بخار افقی

برای مشاهده توضیحات تکمیلی در خصوص محصول استریل کننده های بخار افقی کیلک کنید.

برای خرید محصول با کد NC 150 اینجا کلیک کنید.
برای خرید محصول با کد NC 150D اینجا کلیک کنید.

NC 150/150D

کاتالوگ محصول

دانلود

NÜVE

کاتالوگ شرکت

دانلود

DETAILS

TECHNICAL SPECIFICATIONS

OPTIONS & ACCESSORIES

Chamber volume: NC 150: 162 litres / NC 150D: 150 litres.
Sterilization temperatures: 121°C, 125°C, 134°C, 136°C.
With its double doors, NC 150D is the ideal solution for the small sterilization centres which are divided as clean and sterile areas.
Advanced technology for the sterilization of textile, wrapped or packed materials, glass and liquid.
Integrated steam generator for fast production of steam.
Maintenance-free diaphragm type powerful vacuum pump.
Fractionated pre-vacuum to eliminate all air bubbles and achieve successful steam penetration.
Fractionated post-vacuum for efficient drying of the samples.
Air driven gasket by with internal compressor.
Pressure measurement of gasket.
Delivered with shelf carrier and six shelves.
Sterilization quality matching the needs of EN 285 European Standard for Large Steam Sterilizers.
Pre-heated chamber to eliminate condensation on the chamber walls and speed up the heating of the samples.
7 preset programs: Resistant textile, Wrapped porous, Prion, Quick Unwrapped, Resistant rubber, Sensitive material, Gravity.
10 free programs and two special programs for liquid sterilization and drying.
Vacuum leakage and Bowie & Dick test programs.
Powerful and reliable N-Smart™ microprocessor control system.
Operating parameters can be tracked graphically against time.
Massive data storage with internal memory which stores the records of last 500 cycles in detail and 29.500 cycles as summary.
Process evaluation system.
Comprehensive self - diagnostic system for possible failures.
Memory for the last 100 failures.
USB port to record the operated cycles in the memory to a memory stick.
Wi-Fi connection for N-Mobile™ application for traceability and instant notifications
Ethernet port for remote access through internet by means of optional NuveCloser™ software.
Panel type printer to keep the records of the sterilization cycle.
Password protected control system, service and calibration menu.
Colour of the display changes to red in case of any alarm condition along with an audible alarm.
Reminder for gasket and filter replacement.
Remote failure diagnostics by means of NuveCloser™ software.
Sending e-mails up to five e-mail addresses with the details of failure.
Optional AlerText™ SMS alarm system for ultimate security.
Safety valve against over pressure.
HEPA filter at air intake line.
Certified chamber according to PED 2014/68 EU.

	NC 150	NC 150D
Chamber Volume, litres	162	150
Sterilization Temperature	105°C - 136°C
No of Preset Programs	7
No of Free Programs	10
Special Programs	Liquid Sterilization and Drying
Test Programs	Vacuum Leakage, Bowie & Dick
Minimum Vacuum Level	200 mbar
Control System	N-Smart™ Control System
Display	4,3'' Colourful LCD Display
Internal Material	Stainless Steel
External Material	Stainless Steel and Epoxy Polyester Powder Coated Stainless Steel
Standard Accessories	Shelf Carrier and 6 Shelves (4 pcs. 420x740 mm, 1 pc. 275x740 mm, 1pc. 330x740 mm)
Power Rating	11.500 W
Power Supply	400 V 50/60 Hz, 3 phases + N + G
Chamber Dimensions (Dia. x H) mm	Ø 496x880	Ø 496x777
External Dimensions (WxDxH) mm	680x1015x1558	670x1020x1558
Packing Dimensions	880x1300x1780
Net/Packed Weight, kg	300/390	330/420

OPTIONS

A 08 191	AlerText™ GSM alarm module
A 08 237	NuveCloser™ Software for PC (operates through internet)

ACCESSORIES

A 08 233	Sealed sterilization pack carrier
A 08 209	Loading cart for shelf and STU carrier
A 08 215	STU carrier and 1 pc. STU
A 08 225	Water softening unit

DETAILS

Chamber volume: NC 150: 162 litres / NC 150D: 150 litres.
Sterilization temperatures: 121°C, 125°C, 134°C, 136°C.
With its double doors, NC 150D is the ideal solution for the small sterilization centres which are divided as clean and sterile areas.
Advanced technology for the sterilization of textile, wrapped or packed materials, glass and liquid.
Integrated steam generator for fast production of steam.
Maintenance-free diaphragm type powerful vacuum pump.
Fractionated pre-vacuum to eliminate all air bubbles and achieve successful steam penetration.
Fractionated post-vacuum for efficient drying of the samples.
Air driven gasket by with internal compressor.
Pressure measurement of gasket.
Delivered with shelf carrier and six shelves.
Sterilization quality matching the needs of EN 285 European Standard for Large Steam Sterilizers.
Pre-heated chamber to eliminate condensation on the chamber walls and speed up the heating of the samples.
7 preset programs: Resistant textile, Wrapped porous, Prion, Quick Unwrapped, Resistant rubber, Sensitive material, Gravity.
10 free programs and two special programs for liquid sterilization and drying.
Vacuum leakage and Bowie & Dick test programs.
Powerful and reliable N-Smart™ microprocessor control system.
Operating parameters can be tracked graphically against time.
Massive data storage with internal memory which stores the records of last 500 cycles in detail and 29.500 cycles as summary.
Process evaluation system.
Comprehensive self - diagnostic system for possible failures.
Memory for the last 100 failures.
USB port to record the operated cycles in the memory to a memory stick.
Wi-Fi connection for N-Mobile™ application for traceability and instant notifications
Ethernet port for remote access through internet by means of optional NuveCloser™ software.
Panel type printer to keep the records of the sterilization cycle.
Password protected control system, service and calibration menu.
Colour of the display changes to red in case of any alarm condition along with an audible alarm.
Reminder for gasket and filter replacement.
Remote failure diagnostics by means of NuveCloser™ software.
Sending e-mails up to five e-mail addresses with the details of failure.
Optional AlerText™ SMS alarm system for ultimate security.
Safety valve against over pressure.
HEPA filter at air intake line.
Certified chamber according to PED 2014/68 EU.

TECHNICAL SPECIFICATIONS

	NC 150	NC 150D
Chamber Volume, litres	162	150
Sterilization Temperature	105°C - 136°C
No of Preset Programs	7
No of Free Programs	10
Special Programs	Liquid Sterilization and Drying
Test Programs	Vacuum Leakage, Bowie & Dick
Minimum Vacuum Level	200 mbar
Control System	N-Smart™ Control System
Display	4,3'' Colourful LCD Display
Internal Material	Stainless Steel
External Material	Stainless Steel and Epoxy Polyester Powder Coated Stainless Steel
Standard Accessories	Shelf Carrier and 6 Shelves (4 pcs. 420x740 mm, 1 pc. 275x740 mm, 1pc. 330x740 mm)
Power Rating	11.500 W
Power Supply	400 V 50/60 Hz, 3 phases + N + G
Chamber Dimensions (Dia. x H) mm	Ø 496x880	Ø 496x777
External Dimensions (WxDxH) mm	680x1015x1558	670x1020x1558
Packing Dimensions	880x1300x1780
Net/Packed Weight, kg	300/390	330/420

OPTIONS & ACCESSORIES

OPTIONS

A 08 191	AlerText™ GSM alarm module
A 08 237	NuveCloser™ Software for PC (operates through internet)

ACCESSORIES

A 08 233	Sealed sterilization pack carrier
A 08 209	Loading cart for shelf and STU carrier
A 08 215	STU carrier and 1 pc. STU
A 08 225	Water softening unit
